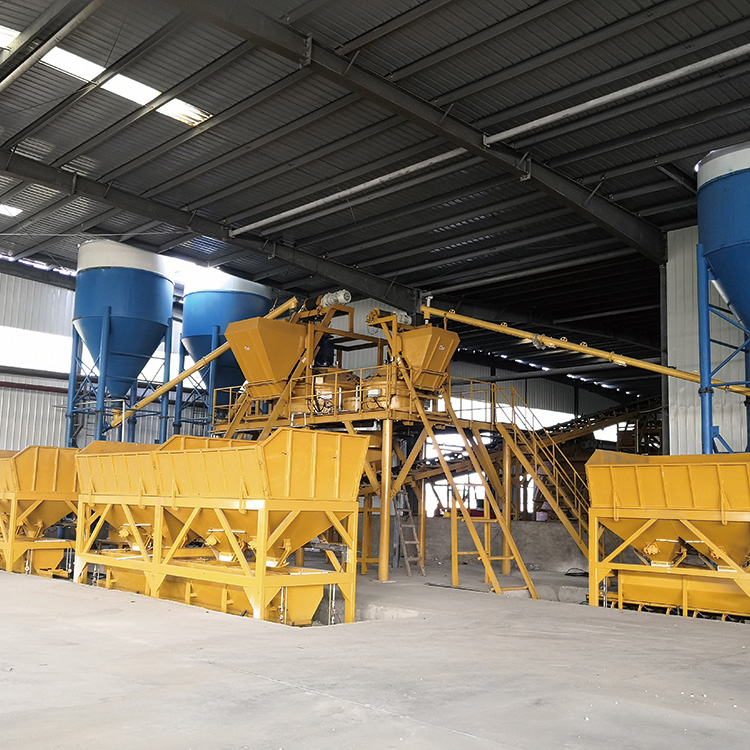

Concrete mixing station for producing permeable bricks:
Mixer: CMP1500 vertical axis planetary mixer, with a discharge capacity of 1500 liters, a feed capacity of 2250 liters, and a mixing power of 45KW
CMPS330 vertical axis fast mixer, with a discharge capacity of 330 liters, a discharge mass of 400KG, and a mixing power of 18.5Kw.
Batching machine, with 4 batching bins, the volume of each batching bin is determined according to actual needs, with high batching accuracy, aggregate weighing accuracy ≤2%, and cement, powder, water and admixture weighing accuracy of ≤1%.
Cement silo: often equipped with 2 or more cement silos with a capacity of 50 tons or 100 tons, the specific number and capacity can be selected according to production needs and site conditions.
Screw conveyor: used to transport cement and other powder materials, the conveying capacity is generally around 20-30 tons/hour.
Equipment features
Reasonable structural design: The overall structure is compact, the floor space is relatively small, it is easy to install and demolish, and it is suitable for permeable brick production projects with different site conditions.
High degree of automation: The use of advanced control systems can realize the automatic control of the entire production process such as batching, mixing, and conveying, reduce manual operations, and improve production efficiency and product quality stability.
Good mixing quality: The vertical axis planetary concrete mixer can mix the materials evenly in a short time, ensuring that the performance indicators such as workability and strength of the permeable brick concrete meet the requirements.
High batching accuracy: The high-precision metering system can accurately control the amount of various raw materials, providing a strong guarantee for the production of high-quality permeable brick concrete.
Excellent environmental protection performance: Equipped with environmental protection equipment such as dust recovery devices and sewage treatment systems, it can effectively reduce dust emissions and sewage pollution, and meet environmental protection requirements.

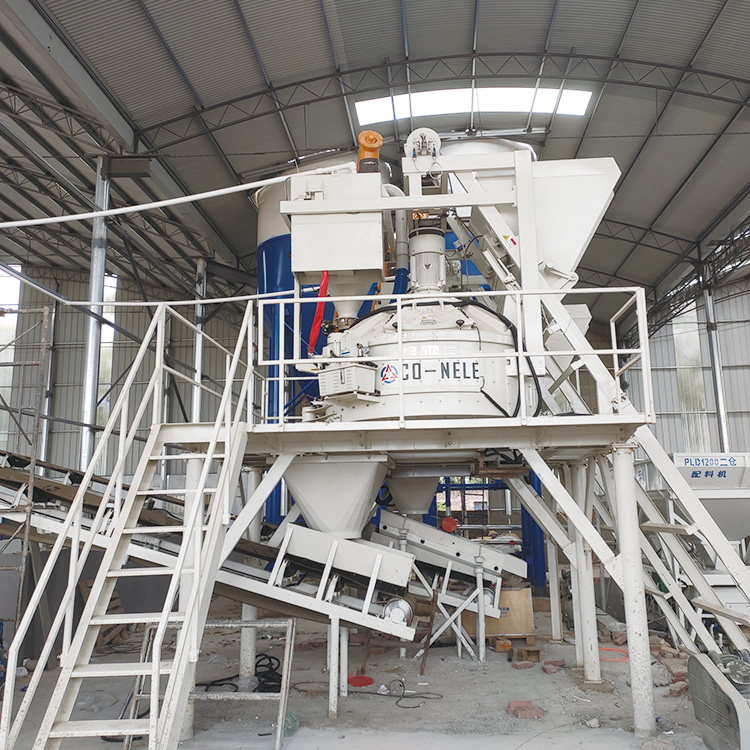

CMP1500 vertical axis planetary concrete mixer for permeable brick base material mixing
Function: It is mainly used to mix the bottom material of permeable bricks, usually a mixture of larger particle size aggregates, cement and an appropriate amount of water to form a bottom concrete with certain strength and permeability.
Features
Large mixing capacity: In order to meet the large amount of material required for the bottom layer of permeable bricks, the ground material mixer generally has a large mixing capacity and can mix more materials at one time to improve production efficiency.
Strong aggregate mixing capacity: It can fully mix large-size aggregates, so that the aggregates and cement slurry are evenly mixed to ensure that the strength and permeability of the bottom concrete are uniform.
Good wear resistance: Due to the large aggregate particle size in the bottom material, the wear on the mixer is relatively large. Therefore, the mixing blades, linings and other parts of the ground material mixer are usually made of wear-resistant materials to extend the service life of the equipment.
Application scenario: Specially used for mixing the bottom material in the production of permeable bricks, suitable for permeable brick production enterprises of various sizes, and ground material mixers of different models and specifications can be selected according to production needs.
CMPS330 vertical shaft fast concrete mixer for mixing permeable brick fabric
Function: Mainly used for mixing the surface material of permeable bricks. The surface material usually requires finer texture to provide better surface texture and color effect. Some pigments, fine aggregates, special additives, etc. may be added to make the surface of permeable bricks more decorative and wear-resistant.
Features
High mixing accuracy: It can accurately control the proportion and mixing uniformity of various raw materials to ensure that the color, texture and other properties of the fabric are stable and consistent to meet the requirements of the surface quality of permeable bricks.
Delicate mixing: Focus on the delicate mixing of materials, and can fully mix fine aggregates, pigments and other tiny particles with cement slurry to make the fabric have good fluidity and uniformity, so as to form a smooth and beautiful surface layer on the surface of permeable bricks.
Easy to clean: In order to avoid mutual contamination between fabrics of different colors or ingredients, the fabric mixer is usually designed to be easy to clean, so that it is convenient to thoroughly clean when changing the fabric formula or color.
Application scenarios: Mainly used in the production of permeable bricks where high quality requirements are placed on the surface materials, such as permeable bricks for landscape projects, high-end residential areas, etc., to meet their strict requirements for appearance quality.
