MP250 Planetary concrete mixer


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T

Product Detail

Product Tags

product introduction



CO-NELE MP series Planetary Concrete Mixer, also called Concrete Pan Mixer, is researched, developed and manufactured using advanced German Technology. This kind of planetary concrete mixer has wider application than twin shaft forced concrete mixer and has better mixing performance for nearly all kinds of concrete such as common commercial concrete, precast concrete, low slump concrete, dry concrete, plastic fiber concrete etc. It also have solved many mixing problems about HPC (High Performance Concrete).



concrete PLANETARY MIXER



Features of CO-NELE Planetary Concrete Mixer, Concrete Pan Mixer:

Strong, Steady, Fast and Homogeneous Mixing Performance
Vertical Shaft,Planetary Mixing Motion Track
Compact Structure, No Slurry Leakage Problem, Economic and Durable
Hydraulic or Pneumatic Discharging



planetary concrete mixer parameter

Item/Type MP250 MP330 MP500 MP750 MP1000 MP1500 MP2000 MP2500 MP3000
Outp capacity 250 330 500 750 1000 1500 2000 2500 3000
Input capacity(L) 375 500 750 1125 1500 2250 3000 3750 4500
Input capacity(kg) 600 800 1200 1800 2400 3600 4800 6000 7200
Diameter of mixing trough(mm) 1300 1540 1900 2192 2496 2796 3100 3400 3400
Mixing power(kw) 11 15 18.5 30 37 55 75 90 110
Mixing blade 1/2 1/2 1/2 1/3 2/4 2/4 3/6 3/6 3/9
Side scraper 1 1 1 1 1 1 1 1 1
Bottom scraper - - - 1 1 1 2 2 2
Weight(kg) 1200 1700 2000 3500 6000 7000 8500 10500 11000

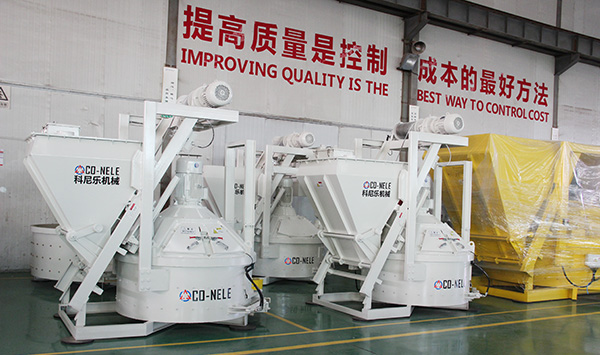

concrete mixer detailed images

58921637856_394596887



1362706504382 7F3DA8AF20A4D8E19B0B48618998BBD832F70DF0_size31_w640_h480

Pre-Sales Service

*Give advice to customer

*Assist customer to choose the right model

*Fabricate according to customer’s requirement

*Train operators for customer

*Technology consulting support for special material mixing

*Supply a suitable technical proposal

After-Sales Service

*Assist customer make the construction scheme

Machine install and test

*Site trouble clearing

*Technical exchange

*Free hotline:0532-87781087

* Engineers available to service machinery oversea
